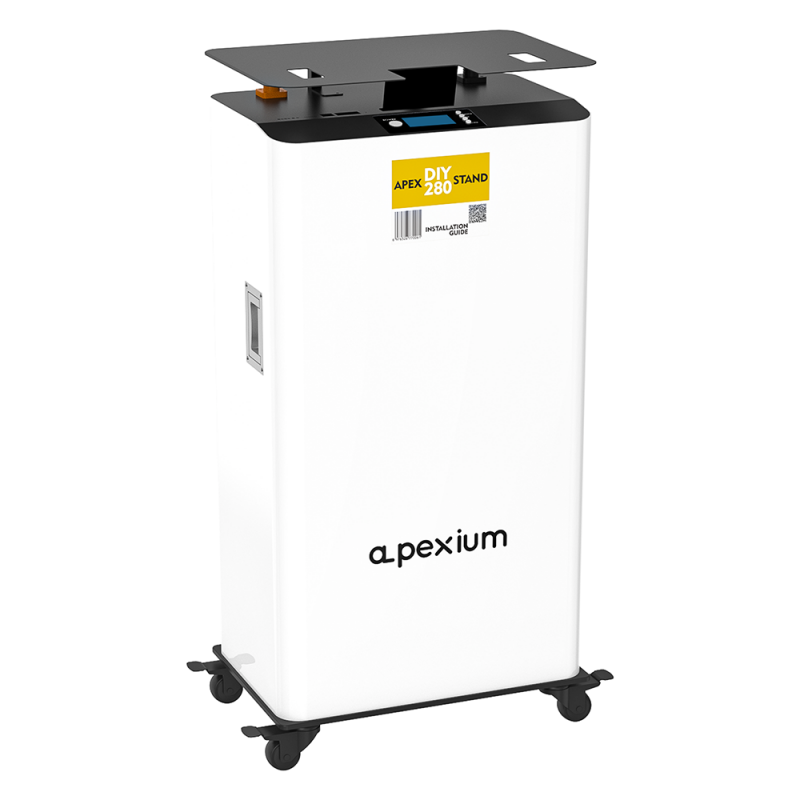

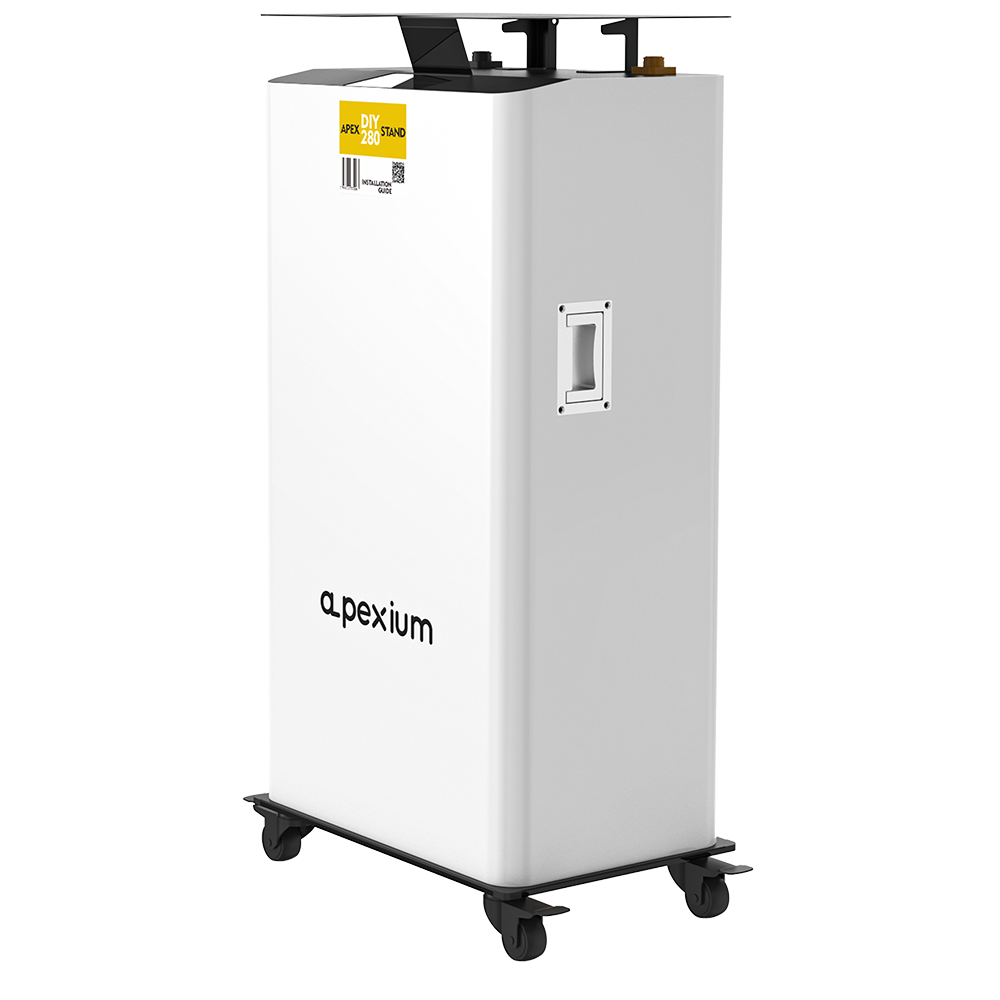

(China stocks) Apexium Stand V2 48V DIY 280/304 kits with JK PB2A16S20P BMS
-800x800w.jpg "(China stocks) Apexium Stand V2 48V DIY 280/304 kits with JK PB2A16S20P BMS")
Out Of Stock
-120x120w.jpg "(China stocks) Apexium Stand V2 48V DIY 280/304 kits with JK PB2A16S20P BMS")
(China stocks) Apexium Stand V2 48V DIY 280/304 kits with JK PB2A16S20P BMS
- Model: Stand V2 DIY 280
- Weight: 42.00kg
- Dimensions: 46.00cm x 31.00cm x 96.00cm
$480.00
10 or more $450.00
50 or more $410.00
100 or more $370.00
Apexium 280 DIY kits with 200A BMS：
2A Active equalization
Over charge protection
Over discharge protectio
Over current protection
Cell balancing
Temperature protection
CAN and RS485 communication
Bluetooth connect phone APP
Support parallel, max parallel 15pcs.
Parts list
1 * Battery Case
1 * JK PB2A16S20P BMS
1 * 58V 400A Fuse
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * 4.3-inch Touch Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
