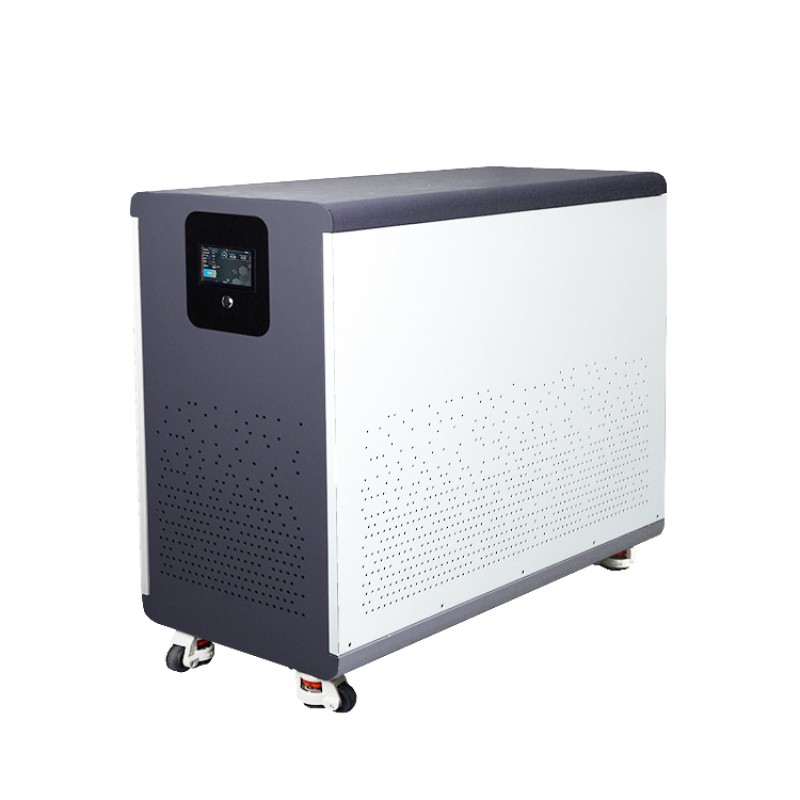

(China stocks) 51.2V 900Ah 46KWh Moveable Battery pack with 200A BMS and touch screen










Battery packs | |
Rated Voltage | 51.2V |
Rated Capacity | 900Ah |
Combination | 16S3P |
Cells model | 280ah or 314ah |
Consistent discharge current | ≤200A |
Max. pulse discharge current | ≤200A |
Charge Temperature | 0~45℃ |
Discharge Temperature | -20~60℃ |
Communication | RS232/RS485/CAN |

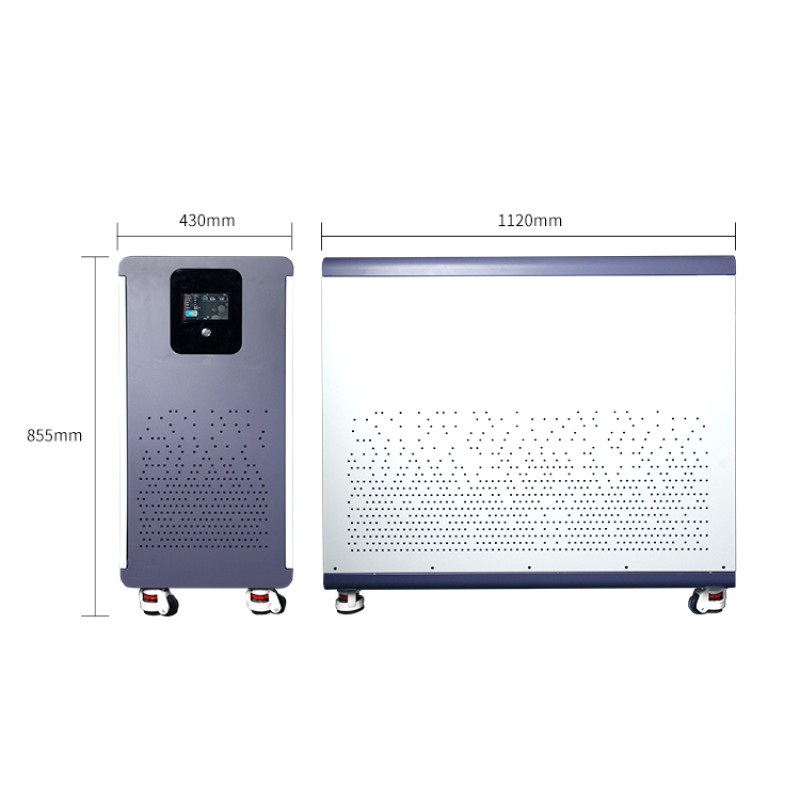

Size | 72*43.5*85.5(CM) |
Weight | 368Kg |
- Model: ZZ48900M
- Weight: 345.00kg
- Dimensions: 101.50cm x 43.50cm x 85.50cm
Available Options
This product is a lithium iron battery pack. The battery pack consists of 48 3.2V 300Ah lithium iron phosphate cells through 16 series and 3 parallel modes Combined.
The battery pack adopts scientific internal structure design and advanced battery production technology.
It has the characteristics of high specific energy and long life, safety and reliability, and wide operating temperature range.
It is a green energy storage power supply product.
Product features:
Battery cell: 280ah or 314ah
• Moveable home energy storage lithium iron phosphate battery, support parallel expansion, up to 16 parallel

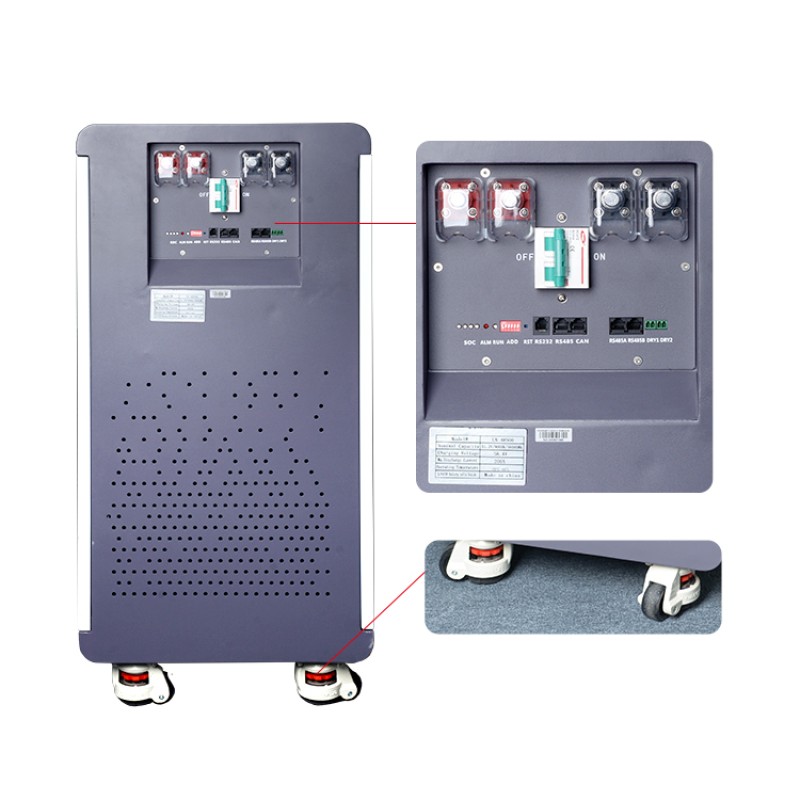

• Support RS485.RS232.CAN communication, compatible with many brands of inverters on the market
• Touch screen, you can select the communication protocol, you can add several small languages, touch screen can customize the customer LOGO, active balancing system can add bluetooth function
BMS has overcurrent. Over pressure. Over charge. Over discharge. Short circuit and other protection functions
