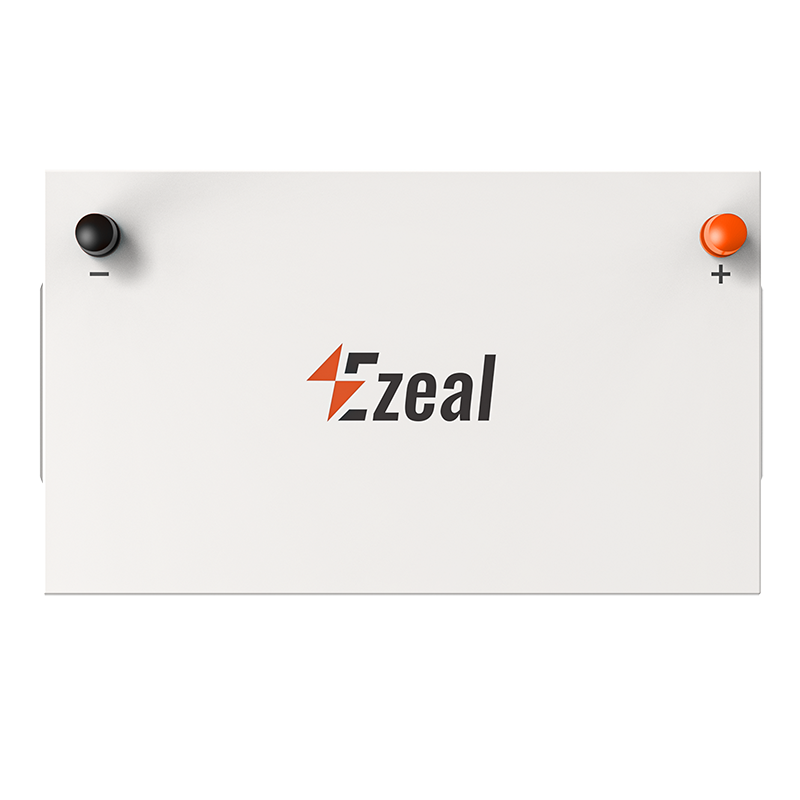

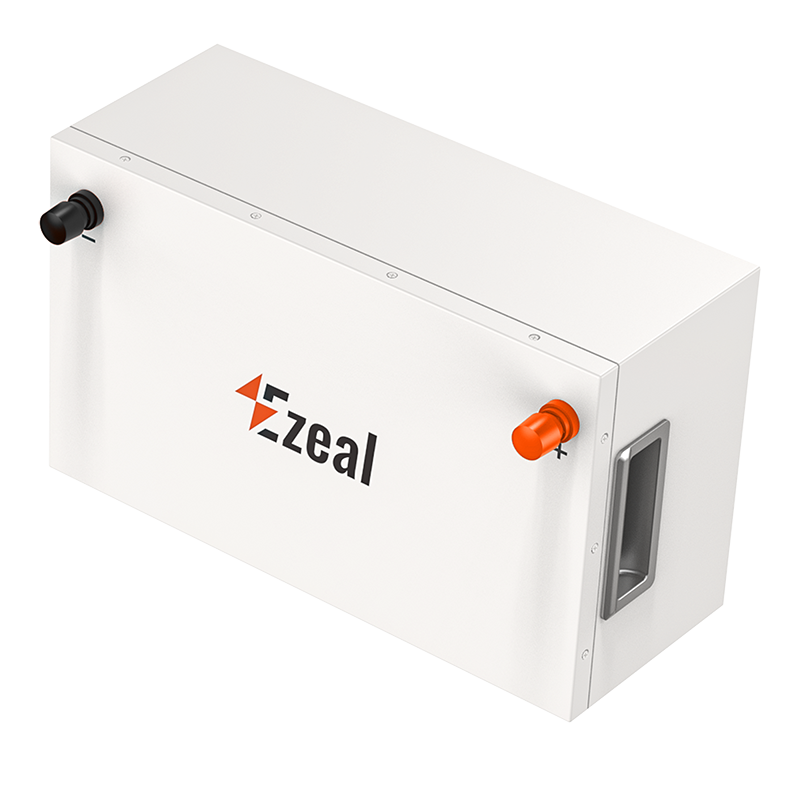

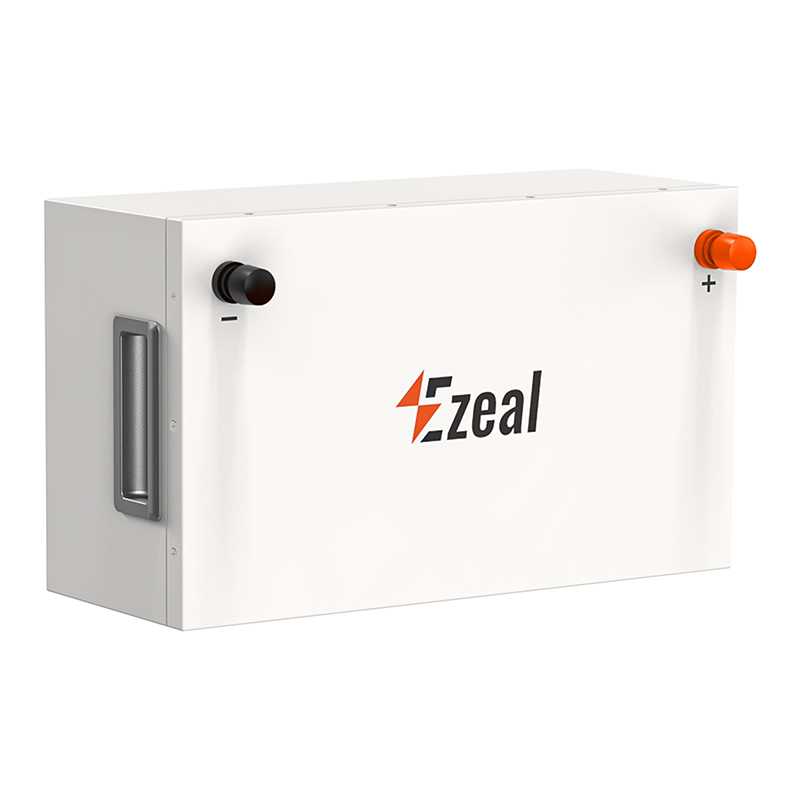

USA Stocks EZEAL 12.8V 200Ah Lithium Iron Phosphate Battery
-800x800.png "USA Stocks EZEAL 12.8V 200Ah Lithium Iron Phosphate Battery")
-800x800.png "USA Stocks EZEAL 12.8V 200Ah Lithium Iron Phosphate Battery")
-800x800.png "USA Stocks EZEAL 12.8V 200Ah Lithium Iron Phosphate Battery")
-120x120.png "USA Stocks EZEAL 12.8V 200Ah Lithium Iron Phosphate Battery")
-120x120.png "USA Stocks EZEAL 12.8V 200Ah Lithium Iron Phosphate Battery")
-120x120.png "USA Stocks EZEAL 12.8V 200Ah Lithium Iron Phosphate Battery")
- Model: 12V 200Ah battery pack
- Weight: 43.00lb
- Dimensions: 39.00cm x 22.00cm x 18.00cm
Available Options
Description
12.8V 200Ah lithium iron phosphate battery
Nominal Voltage: 12.8V
Nominal Capacity: 200Ah
Dimensions: 14.9 8.9 *5.9 inches(L39 * W22 * H18cm)
Weight: 43 Lbs.
Kilowatt-hour(s): 2.52kWh
Lifespan: 15 Years
Cells lifecycles: 6000
Depth of Discharge: 80%+
Warranty: 5 Years
General Specifications
Product Composition: lithium iron phosphate battery
Rated capacity: 200Ah
Internal Resistance: ≤150mΩ
Nominal voltage: 12.8V
Standard Charging Current: 0.2C
Maximum Charging Current: ≤200A
Charging Voltage Limit: 14.6V
Discharge Cut-off Voltage: 10V
Charging temperature: 0°C ~45°C
Discharge temperature: -20°C ~60°C
Features
Single-cell Overcharge Protection
Total Voltage Overcharge Protection
Single-cell Over-discharge Protection
Overcurrent Protection During Charging
Discharge Overcurrent Protection
Short Circuit Protection
Temperature Protection
Balancing Function
Automatic fire extinguishing function
| Battery packs | |
| Cells model | EVE LF100LA 3.2V battery |
| Discharge Temperature | -20°C ~60°C |
| BMS | |
| Battery type and serial number | 4S2P |
| Lifepo4 | |
| Voltage range | 12.8V |
| Max Discharge Current | ≤200A |
| Cycling Performance | 4000 times，25℃，0.2C |
